D38999/20FH53PC MIL-DTL-38999 Wall Mount Circular Receptacle
时间：2026-09-03 15:47 来源：网络

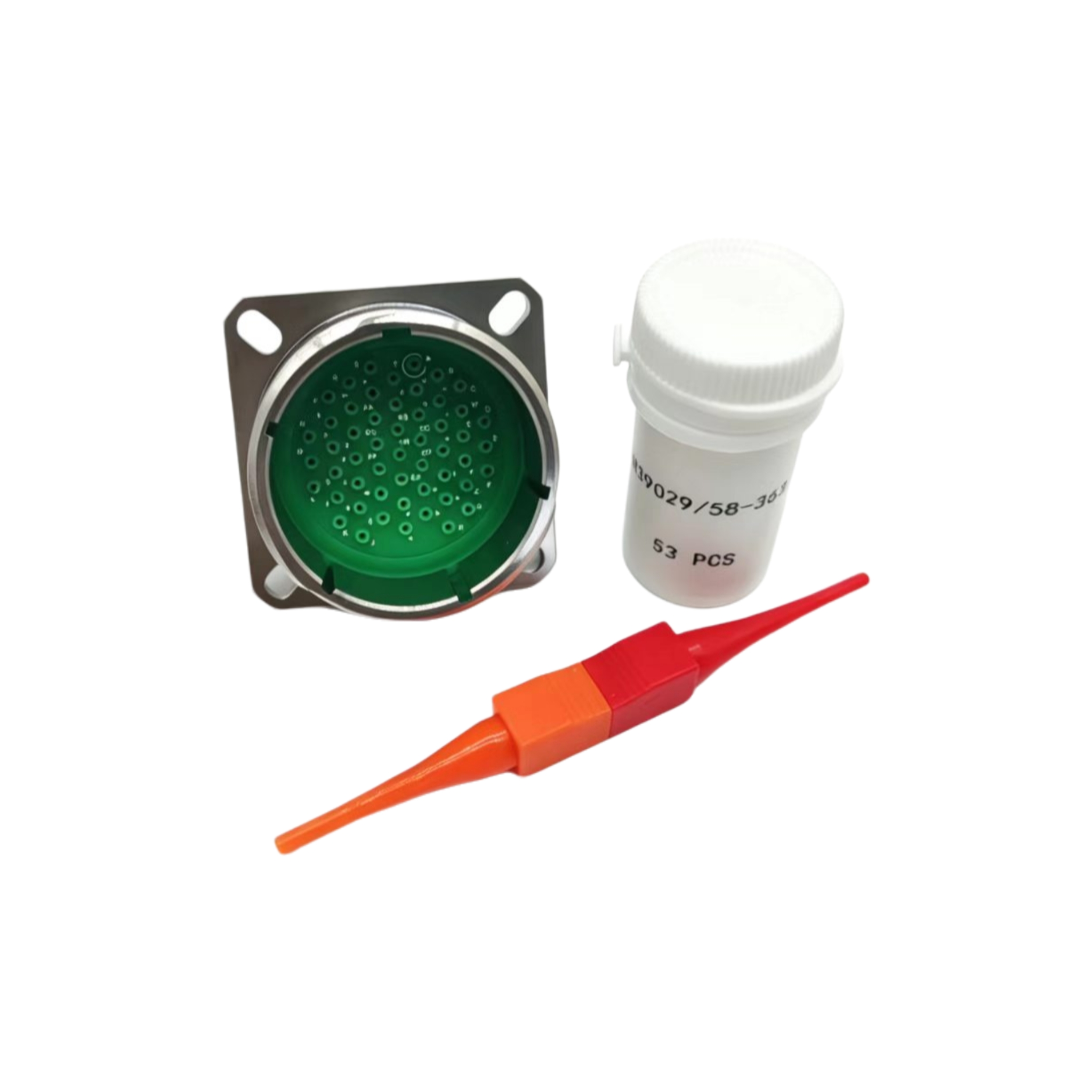

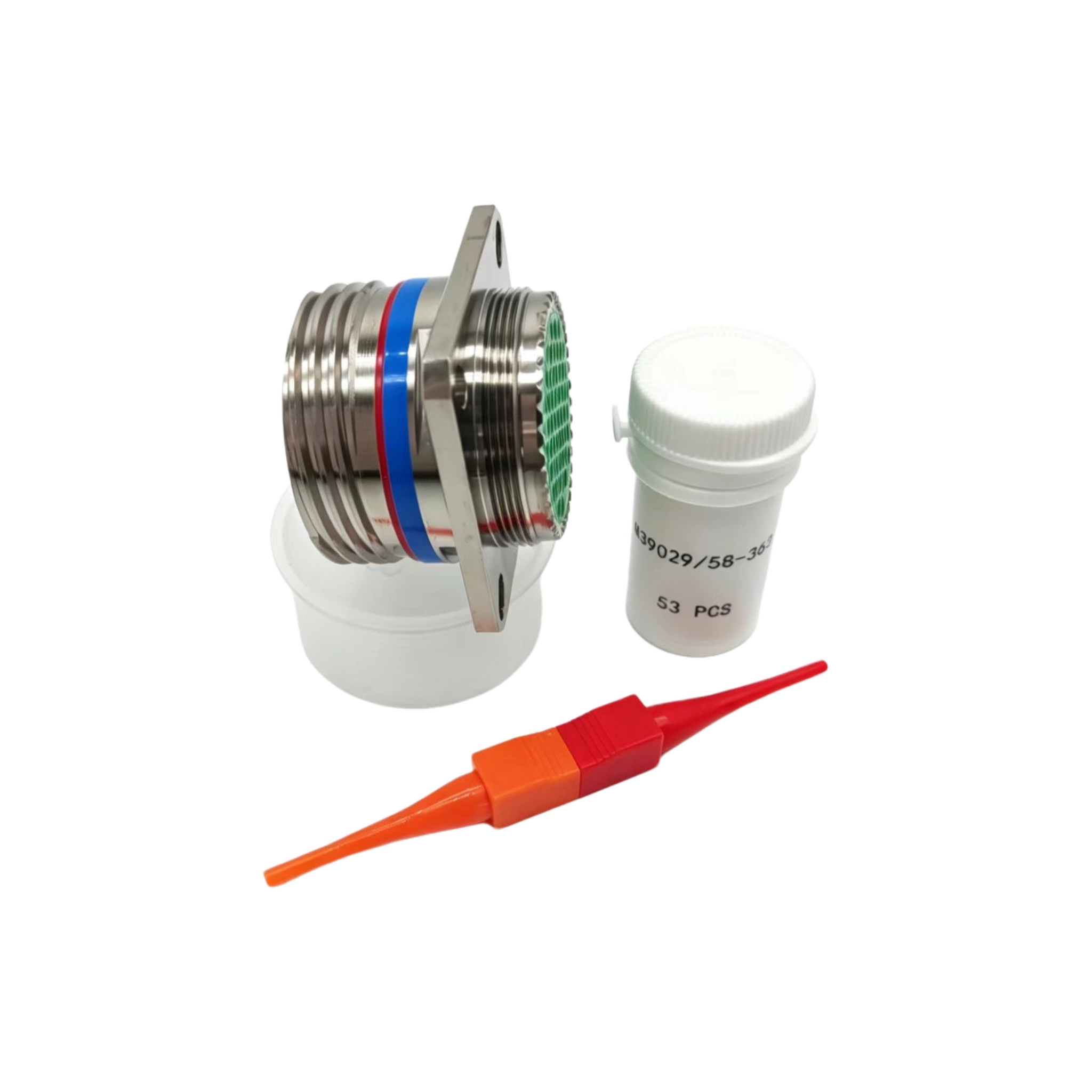

Product pictures
D38999/20FH53PC belongs to the widely adopted MIL-DTL-38999 series wall mount circular receptacle. It’s built for rugged interconnection, commonly picked for industrial and airborne systems that demand reliable signal and power transfer under harsh field environments.
This receptacle features alloy housing with chemical nickel plating. The robust shell delivers strong EMI shielding, good resistance against shock and vibration. Its scoop-proof structure protects delicate contact pins from bending damage during angled mating, a frequent issue engineers meet in on-site wiring work. The insert layout follows standard 53 arrangement, fitted with PC type straight PCB crimp contacts. This contact design works well for direct PCB board mounting, simplifying cabinet internal wiring.
The sealing construction keeps dust and moisture out. It can operate steadily within a broad temperature range and pass strict salt spray and environmental aging tests. All mating dimensions fully comply with MIL-DTL-38999 specs, which means it can interchange with equivalent brand connectors without extra modification.
Once assembly completes, every D38999/20FH53PC unit will go through independent inspection. Our QC team checks appearance, dimensional tolerance, sealing integrity and electrical continuity one by one before packing. We keep stock for this model to support fast sample delivery. Custom adjustments on plating or contact layout can also be arranged if your project has special requirements.
If you’re evaluating this connector for your design, feel free to reach us. We can share full datasheets, pin assignment drawings and arrange physical samples so you can verify performance before bulk order placement.
How to purchase
For anyone looking to buy D38999/20FH53PC connectors, we run a complete one-stop custom buying workflow to make your project much easier.
You start by reaching out to our customer support. We go over your application scenario, operating environment, plus any special demands you have on D38999/20FH53PC. When standard specifications don’t match what you need, our technical team will create custom drawings following your technical requirements. We adjust the design layout and structure repeatedly until you sign off on the drawing.
Once you approve the drawing, we prepare a formal quote for your reference. Quite a number of buyers want to test real samples ahead of bulk purchases. We can arrange sample evaluation and ship D38999/20FH53PC samples, so you get to verify its actual performance before placing large orders. After samples pass your tests and both parties agree on the deal terms, we proceed with payment steps.
We begin mass production for D38999/20FH53PC once payment is confirmed. All connectors are assembled strictly under MIL-DTL-38999 production guidelines. Our QC staff keep doing spot checks while production runs. Every finished D38999/20FH53PC will be checked one by one for size tolerance, sealing performance and electrical continuity, to rule out any faulty pieces.
After all quality checks are completed, we pack D38999/20FH53PC with proper protection. We can arrange shipment by international express or ocean freight based on your timeline. The tracking number will be sent to you right after goods leave our warehouse, so you can track cargo status online anytime.
